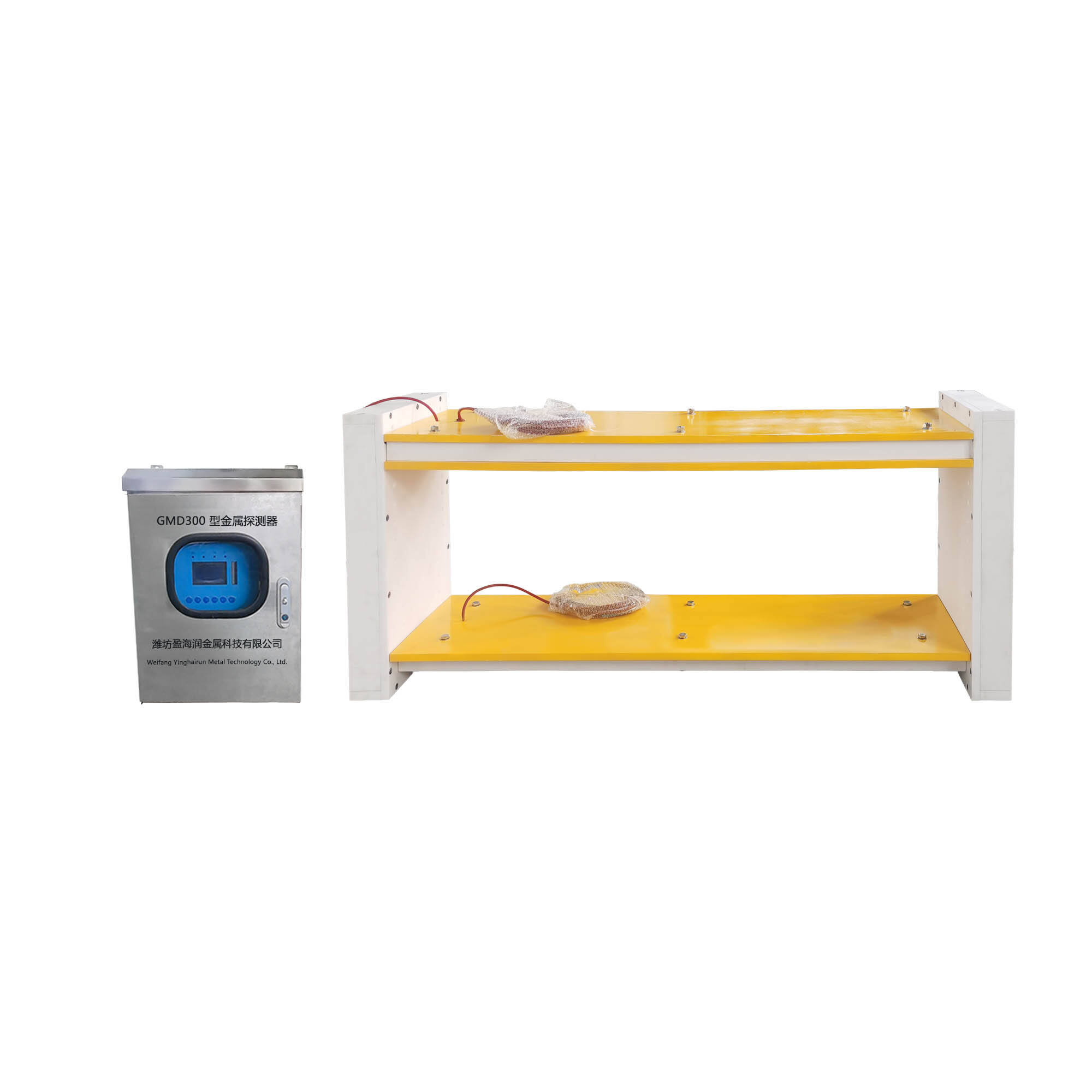

GMD300 Metal Detector

Application

The applicable scope includes black metal mines (iron ore, manganese ore, chromium ore, etc.), non-ferrous metal mines (copper ore, bauxite, lead ore, zinc ore, tin ore, etc.), non-metallic mines (coal mine, quartz mine, limestone mine, etc.) as well as corresponding steel mills, power plants, etc. It is mainly used for protecting the downstream equipment of mining production lines such as cone crushers, double-roll crushers, hammer crushers, impact crushers, sand making machines, belt conveyors, vibrating screens, ultrafine grinding equipment, gravel mills, ball mills, high-pressure roller mills, etc., as well as core components of related industries' conveying equipment such as cement, power plant material processing equipment and wire rope core conveyor belts.

Parameters

Packaging

1.All of the above products are standard models.
2. The size can be customized.
3.The packaging size and weight shall be based on the actual measurement during shipment.

Performance Characteristics

1.Applicable to steel wire conveyors and automatically distinguishes metal belt joints.
2. Applicable to metal ores.
3. Marking timing function with delayed output of marking action for accurate positioning of mixed metals.
4. Supports Modbus fieldbus communication for easy data networking.
5. Multiple IO output interfaces for connection to production lines and automated inspection.

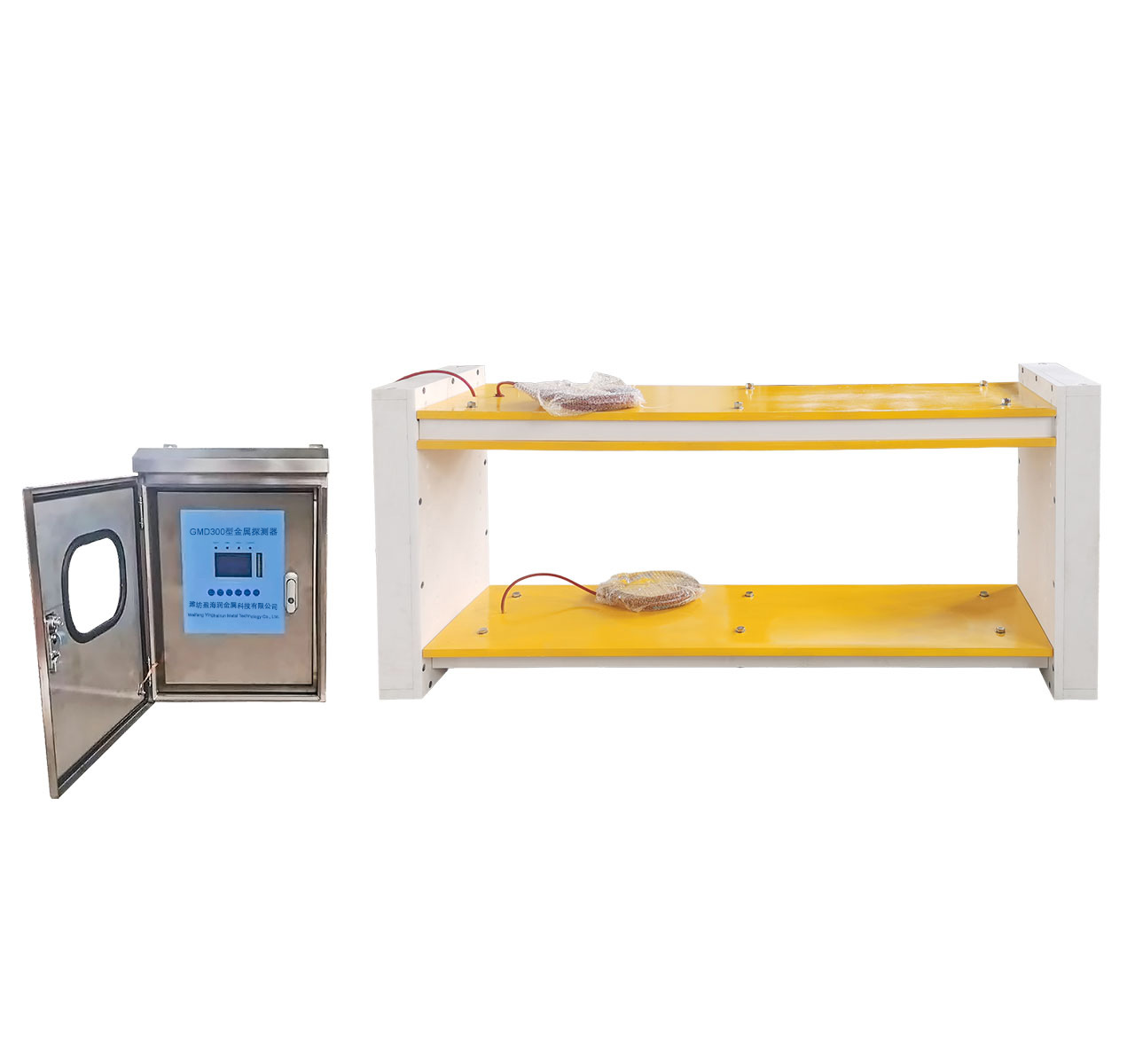

6. LCD screen with Chinese (English) menu interface for easy and clear operation.
7. Password function.
8. Field or central control reset function.

9.Zero-point automatic tracking, no drift.

Core advantages of GMD300:
1. Completely solve the problem of false alarms and missed detections for metal ores;
2. Completely solve the difficulty in detecting high manganese steel and alloy steel;
3. Completely solve the problem of false alarms for steel wire belts;
4. Customizable explosion-proof control boxes can be provided according to customer requirements.

RFQ

Compared with other similar products, what are the unique features of our equipment?
Our equipment has the functions of detecting metal, large pieces of metal, and long rods of metal. Each type has its own separate alarm signal output, which makes it convenient for users to adopt different processing strategies according to production needs. For example: The metal alarm signal is linked with the electromagnetic iron remover. When metal is detected, the electromagnetic iron remover is powered on to complete the metal removal action. Usually, the electromagnetic iron remover does not consume electricity. When large pieces of metal are detected, the electromagnetic iron remover cannot remove the metal, and when long rods of metal are detected, there is a risk of damaging the belt. At this time, the corresponding output signal can be linked to the belt conveyor control system to perform a shutdown operation. Thus, while maintaining normal production, it not only reduces energy consumption but also ensures equipment safety.

Compared with other similar products, what are the advantages of pulse wave detection?
The pulse wave detection method is that the detection equipment emits pulse waves at a fixed working frequency intermittently. When detecting the echo signal, it processes it within a specific time period. Various noise signals in other time periods do not affect the system, thus naturally reducing the degree of interference from noise. In addition, in the pulse wave emission and reception detection process, we adopted the mean matching algorithm to automatically track the influence of material effects and adjust the system zero point in real time to ensure that the system will not be affected by zero drift.

Why can it be used on the steel wire conveyor belt?

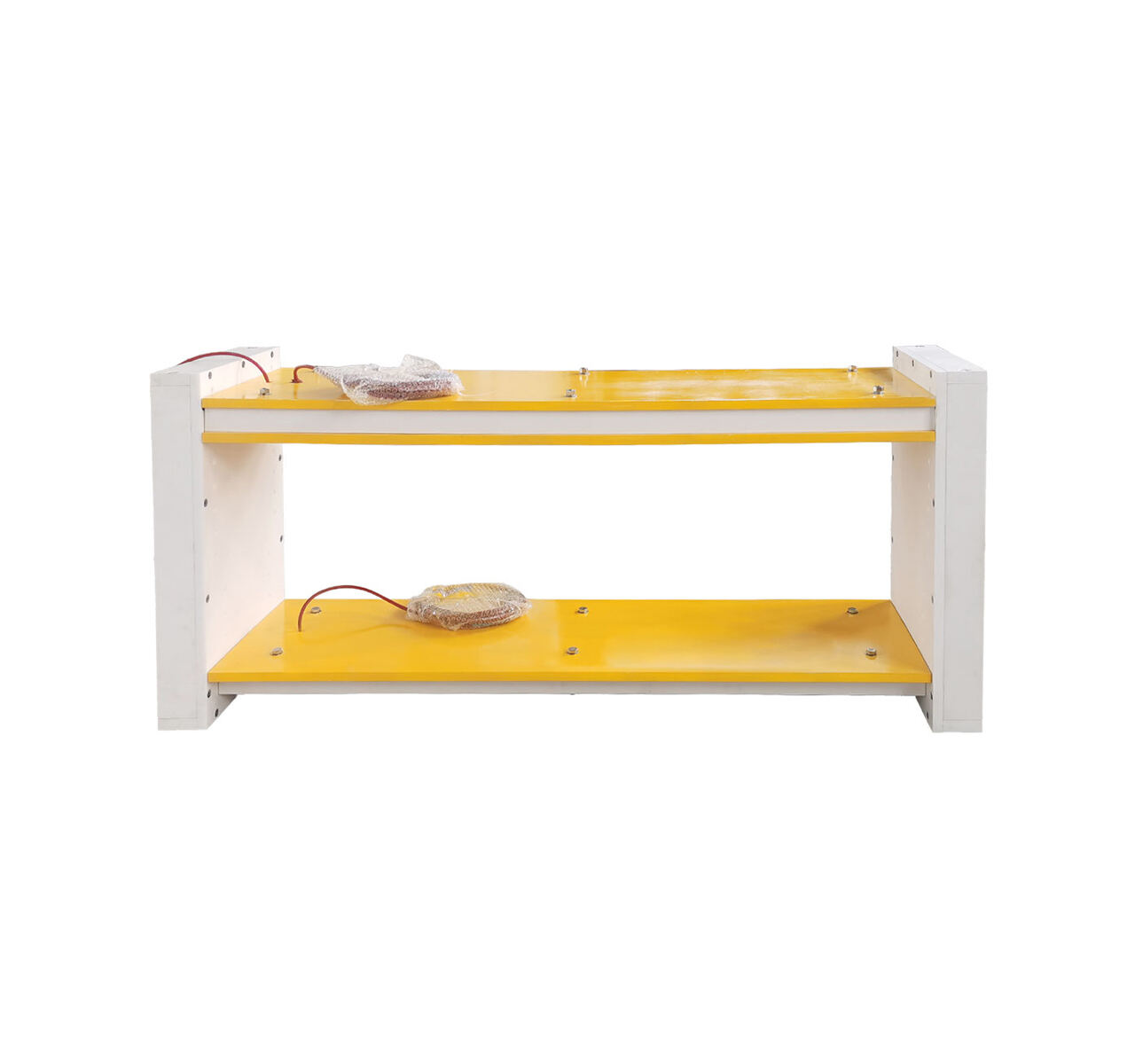

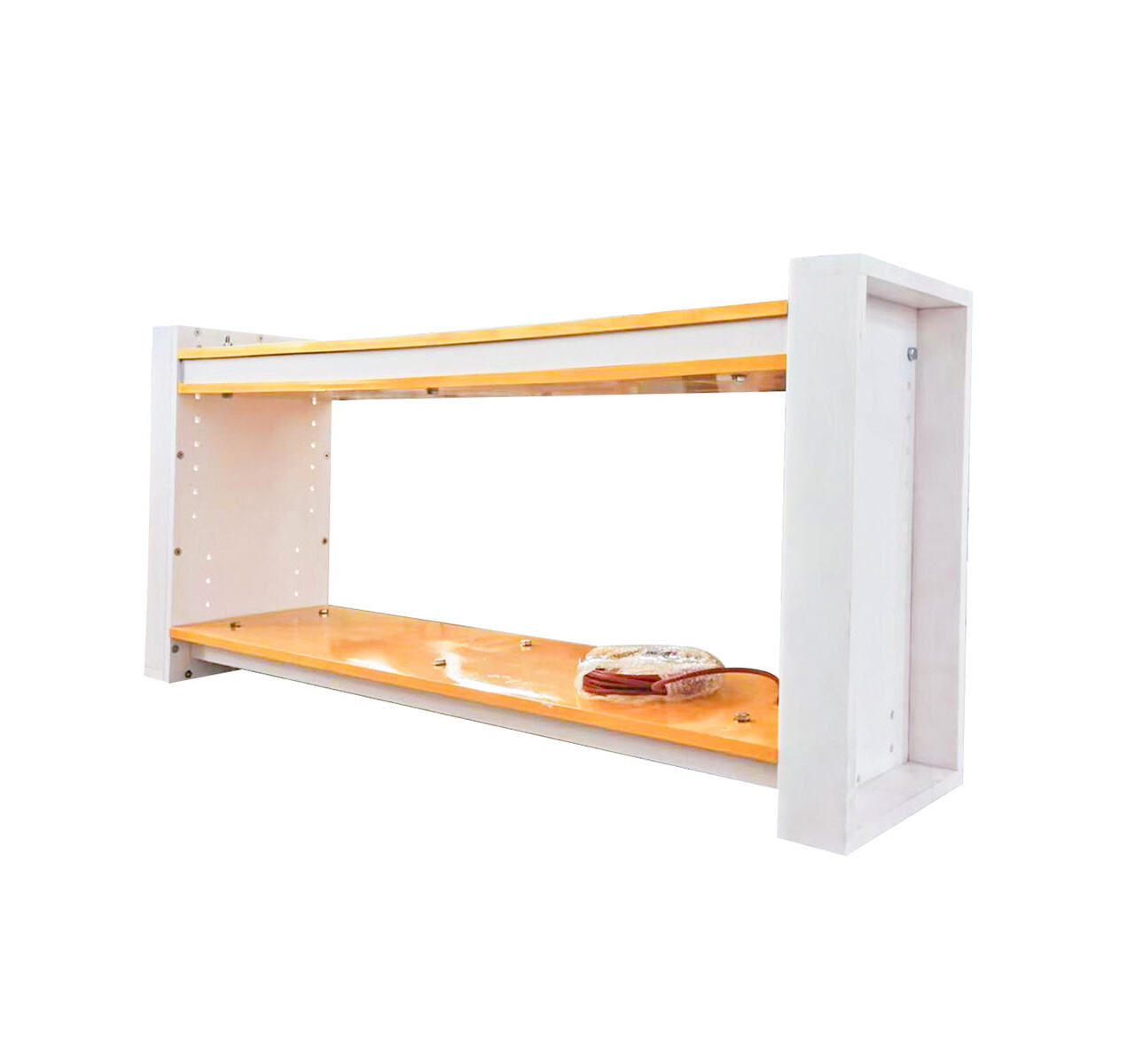

Because our metal detector uses the balanced coil technology. Two transmitters and one receiver are employed. The space between the transmitting coil and the receiving coil forms a uniform electromagnetic field. When the steel wire belt passes through this electromagnetic field, it will generate certain eddy currents. However, the value of these eddy currents is fixed. The voltages of the two positive and negative connected receiving coils cancel each other out, resulting in a nearly zero balanced voltage. Our host can automatically track and correct the zero drift, ensuring the stability of the zero point. Therefore, the steel wire conveyor belt has no impact on our equipment.
